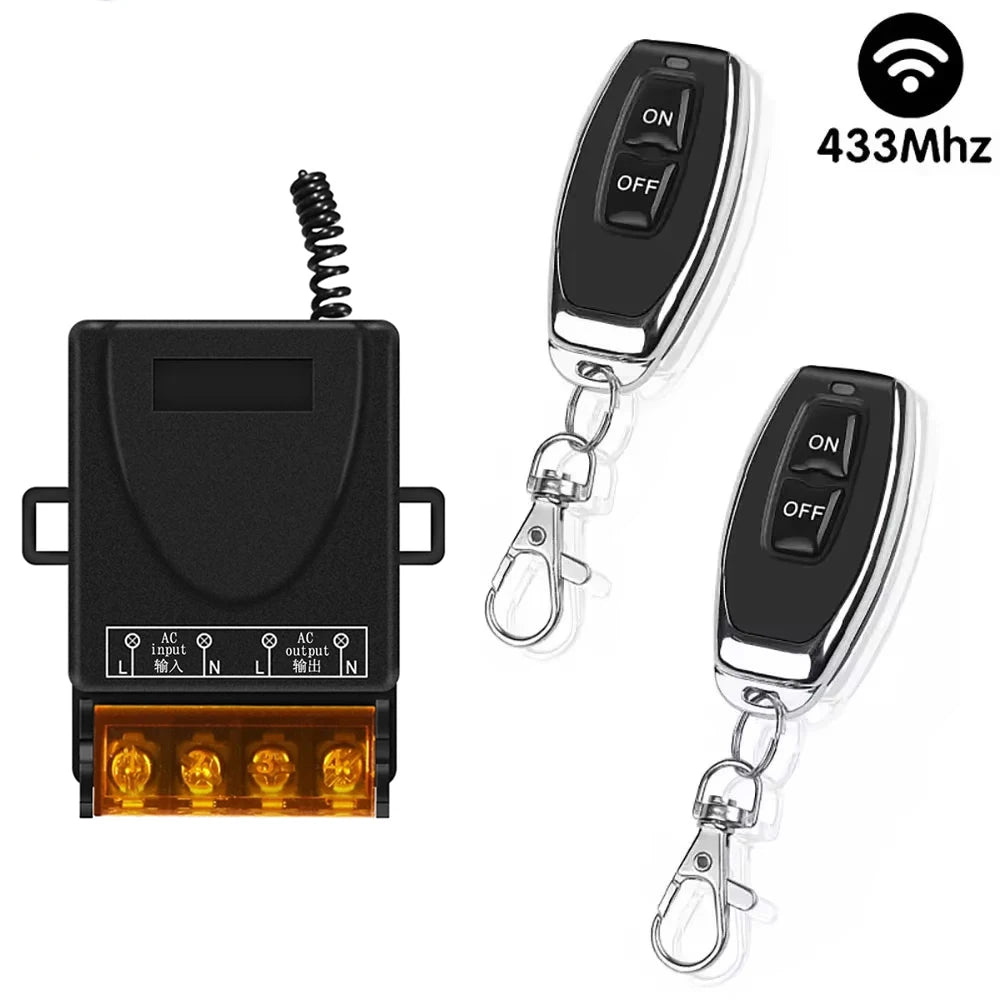

433Mhz Wireless Remote Control Switch AC 110V 220V 10A Relay 1CH Receiver Controller and 2 botton RF433 Mhz Transmitter
Couldn't load pickup availability
433Mhz Wireless Remote Control Switch AC 110V 220V 10A Relay 1CH Receiver Controller and 2 botton RF433 Mhz Transmitter
Free Standard Shipping Over 59.00 USD+
Free Standard Shipping Over 59.00 USD+
Free shipping on all items in your cart of US$59 and above! At BeautyFashion, we work diligently to deliver your orders to you as quickly and securely as possible. Once your order is delivered to the courier, your tracking number will be automatically sent to your email address. With this information, you can easily track the status of your shipment in real time via the "Order Tracking" page on our website. While you enjoy the excitement of your order, we deliver it safely to you. Free shipping on all items in your cart of US$59 and above! At BeautyFashion, we work diligently to deliver your orders to you as quickly and securely as possible. After your order is delivered to the courier, your tracking number will be automatically sent to your email address. With this information, you can easily track the status of your shipment in real time via the "Order Tracking" page on our website. While you enjoy the excitement of your order, we deliver it safely to you.
Easy Returns within 30 days
Easy Returns within 30 days
-Items in the following categories cannot be exchanged or returned: Bikinis, swimsuits, lingerie, tights, hosiery, and accessories (excluding belts and bags), evening gowns, dresses, and corsets (our evening gowns are custom-made and therefore cannot be returned). We take the health and safety of our customers seriously, and intimate items cannot be resold after being opened or used.
🎁 Special End-of-Season Multi-Buy DISCOUNT!
- Extra 10% OFF on orders over 200 USD
- Extra 15% OFF on orders over 400 USD
- Extra 20% OFF on orders over 600 USD
NOTE: The LED indicator light on the remote control is red in the video, but it is actually blue,
don't worry, the functionality is the same

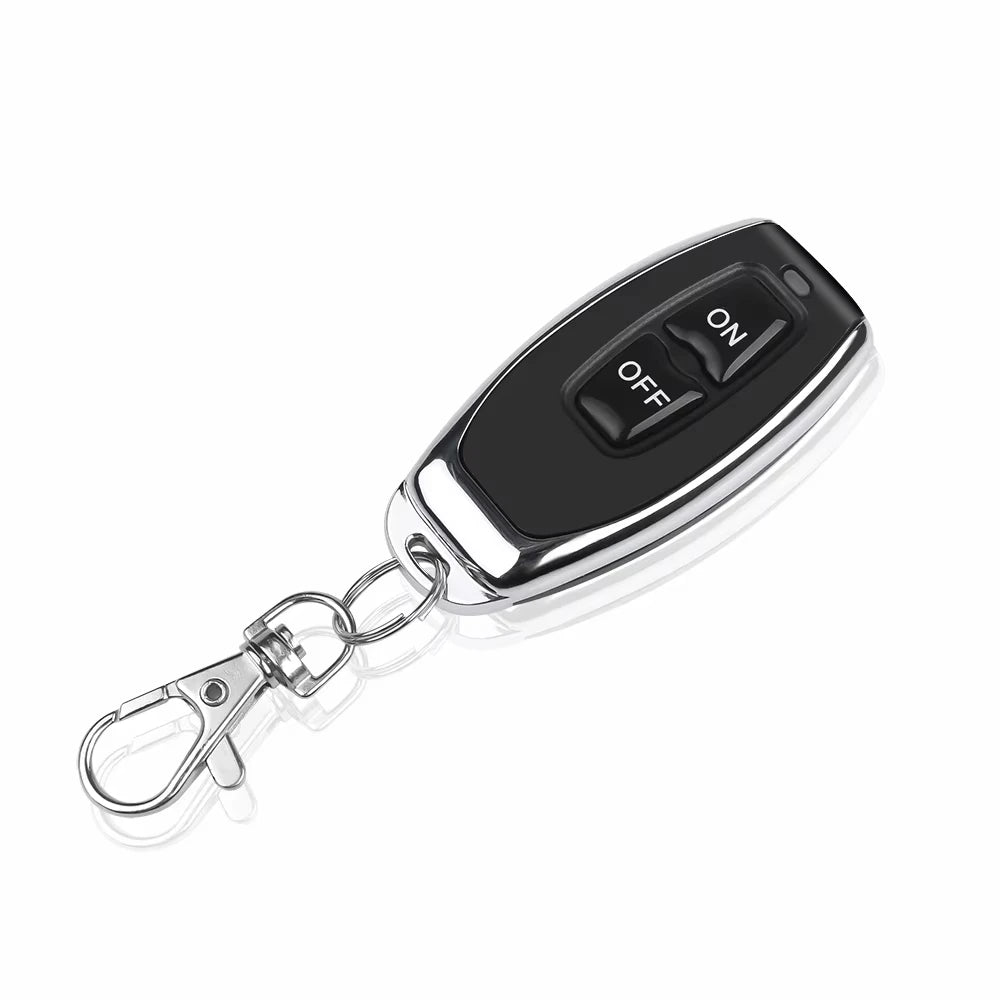

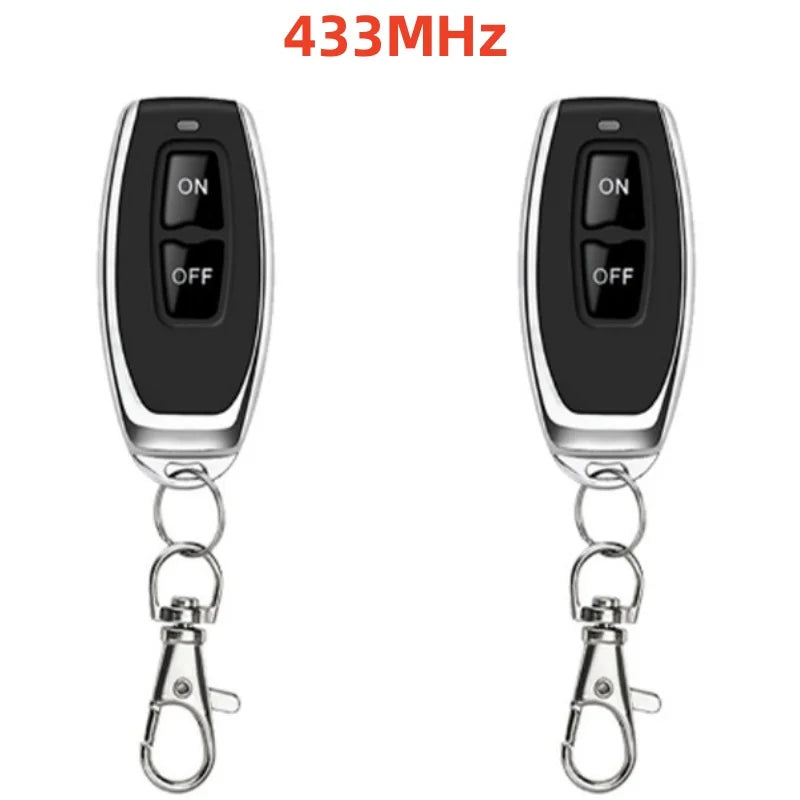

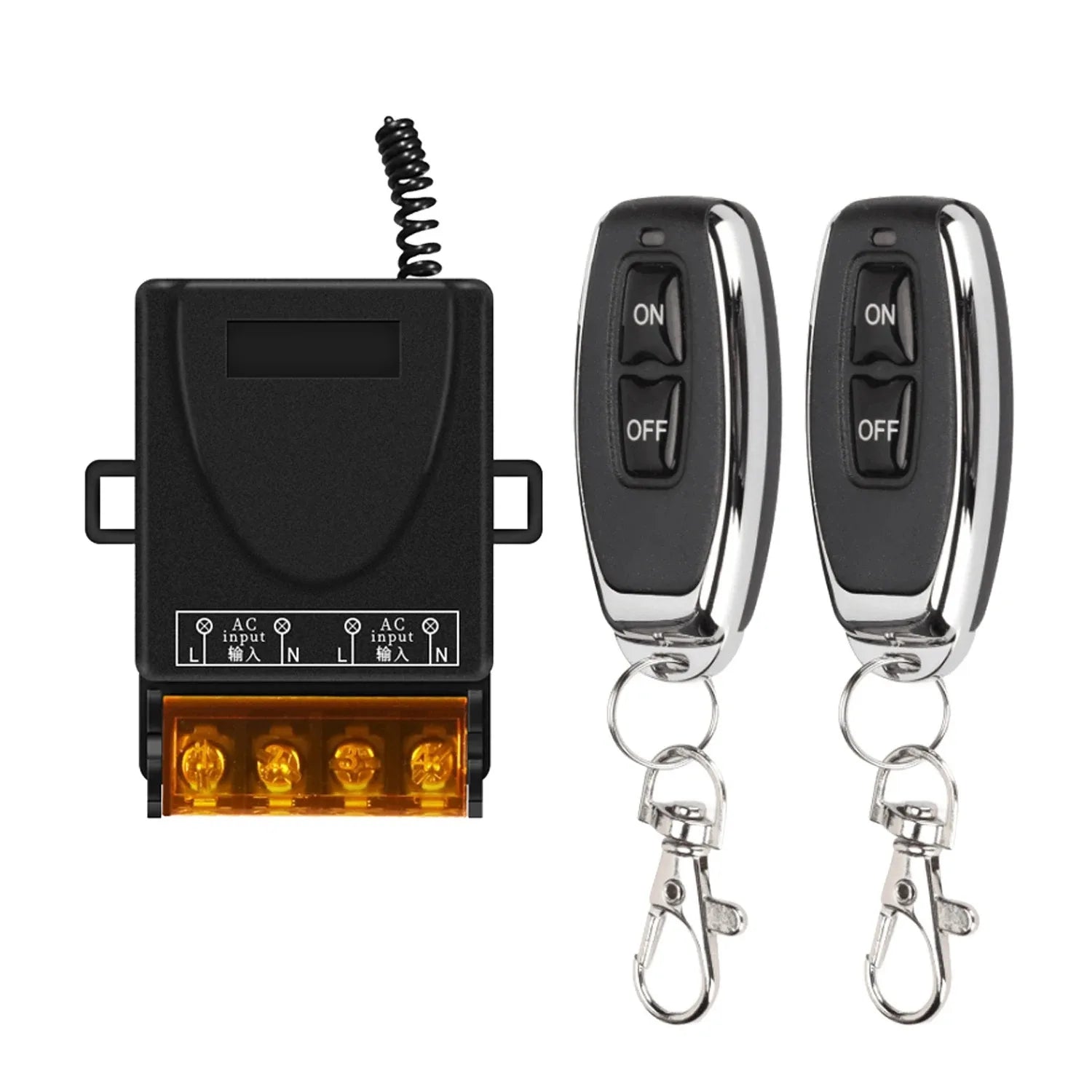

Remote control Transmitter
Operating voltage: DC12V (23A/12V battery x1)
Transmitting frequency: 433MHz
Encoding Type: Fixed code
Receiver sensitivity: > -105dB
Transmission distance : 100M (Open field)
Size: approx 55*28*10mm

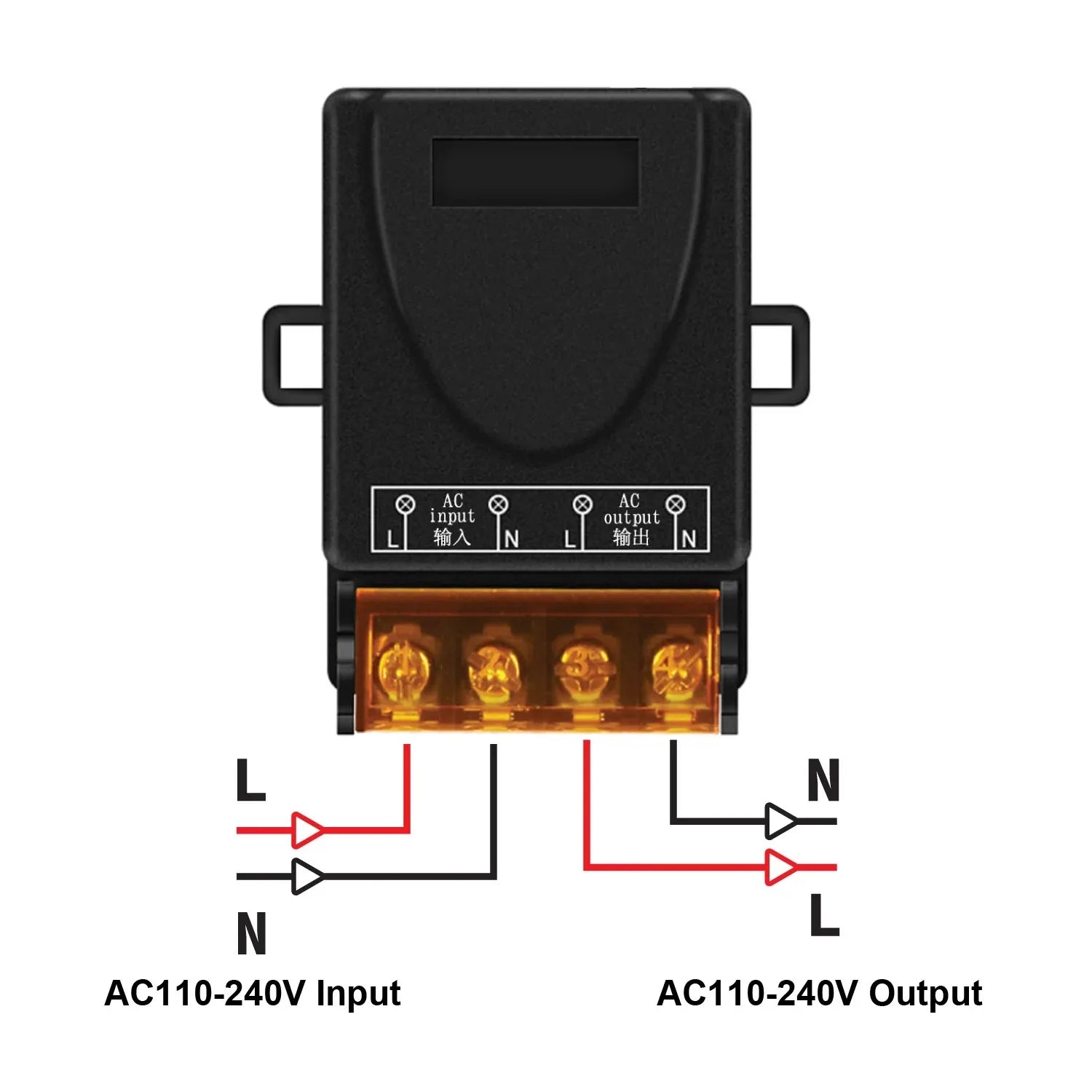

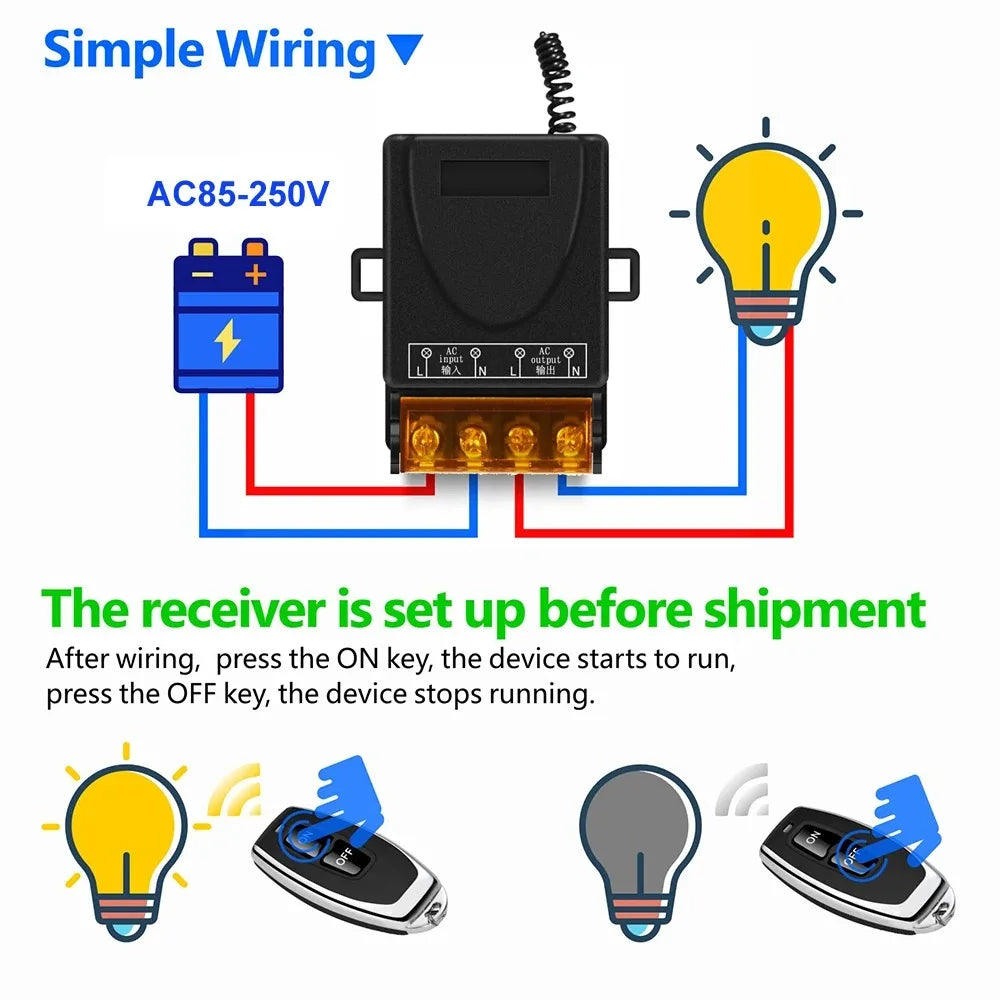

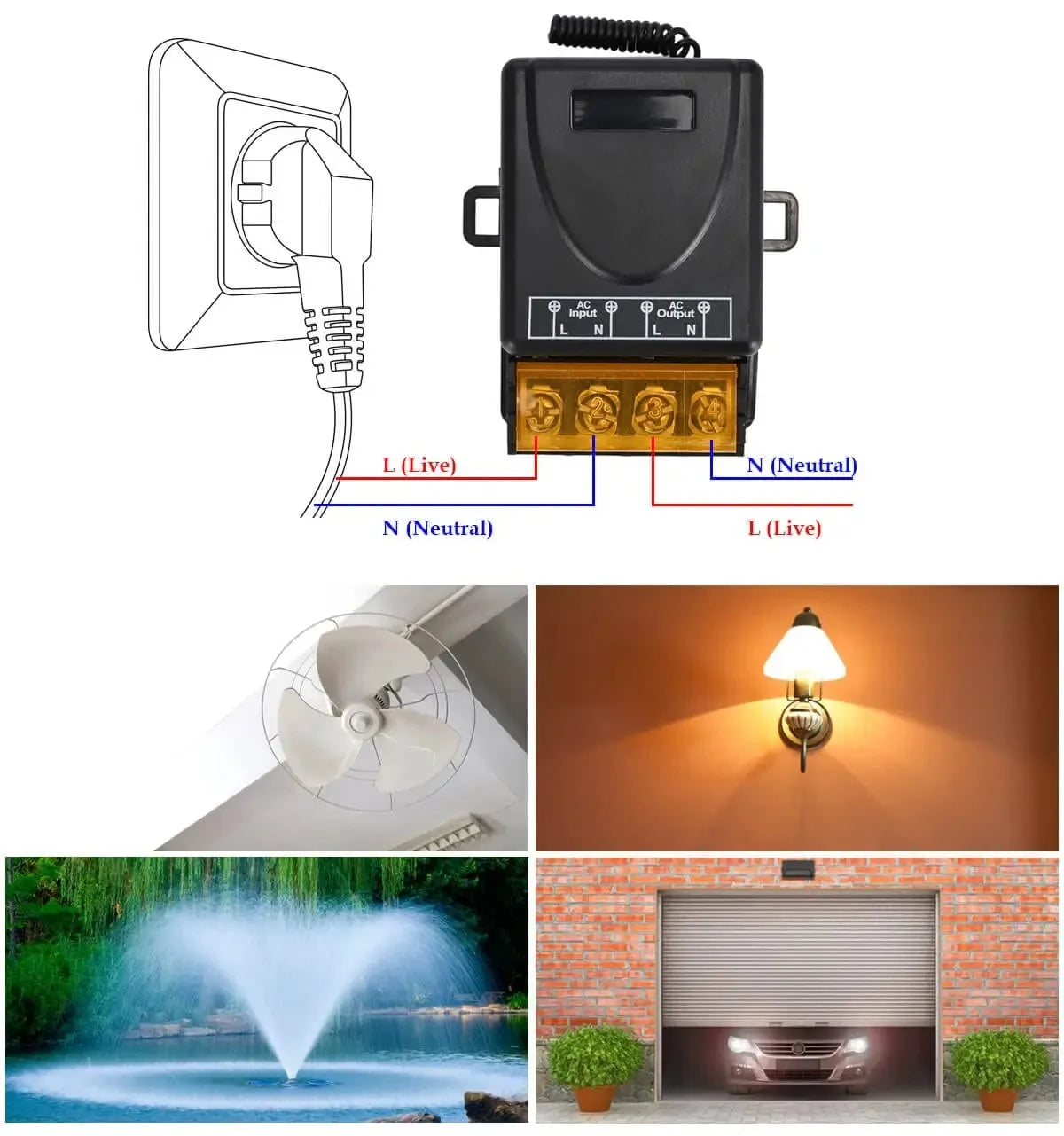

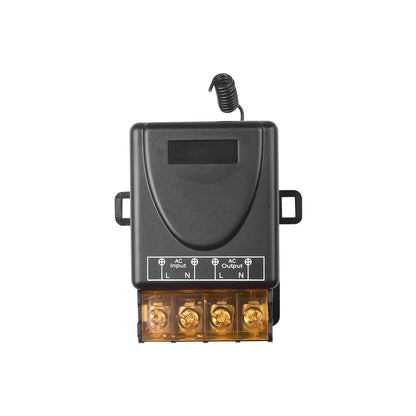

Operating voltage: AC 110V - 240V
Output voltage = Operating voltage
Operating frequency: 433MHz(Same with Remote control)
Encoding Type: learning code
Rated contact current of relay: 15A/240VAC, 15A/110VAC (Please notice that : Although the relay is marked 30A 240VAC. The 30A is for the peak current of your load. The rated current of your load should less than 15A)

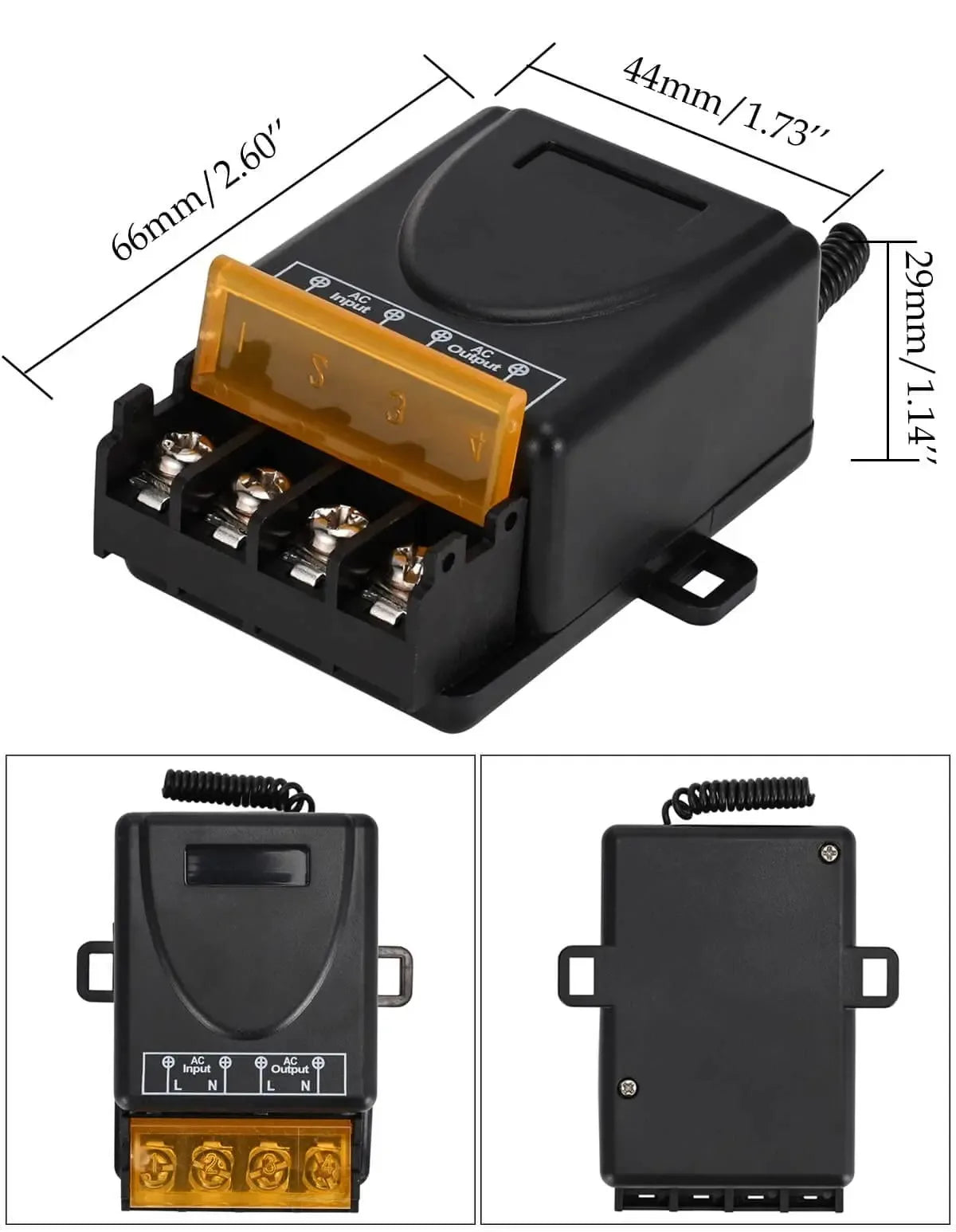

Box size: Approx 65x45x28m
About Working way:
Momentary: Relay: Press and hold -> On; Release -> Off.
Toggle: Relay: Press -> On; Press same button again -> Off·
Latched: Relay: Press -> On; Press other button -> Off.
Delay time :
Press remote control button, the corresponding relay actuates and keeps working until the time out.

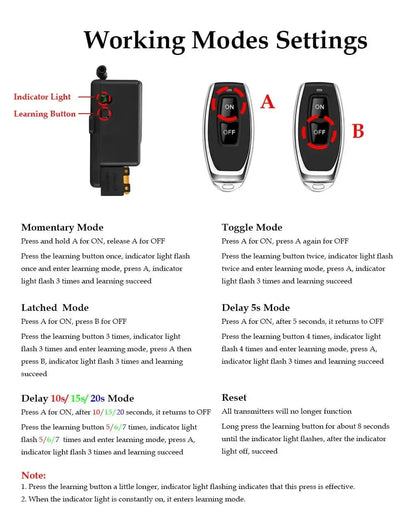

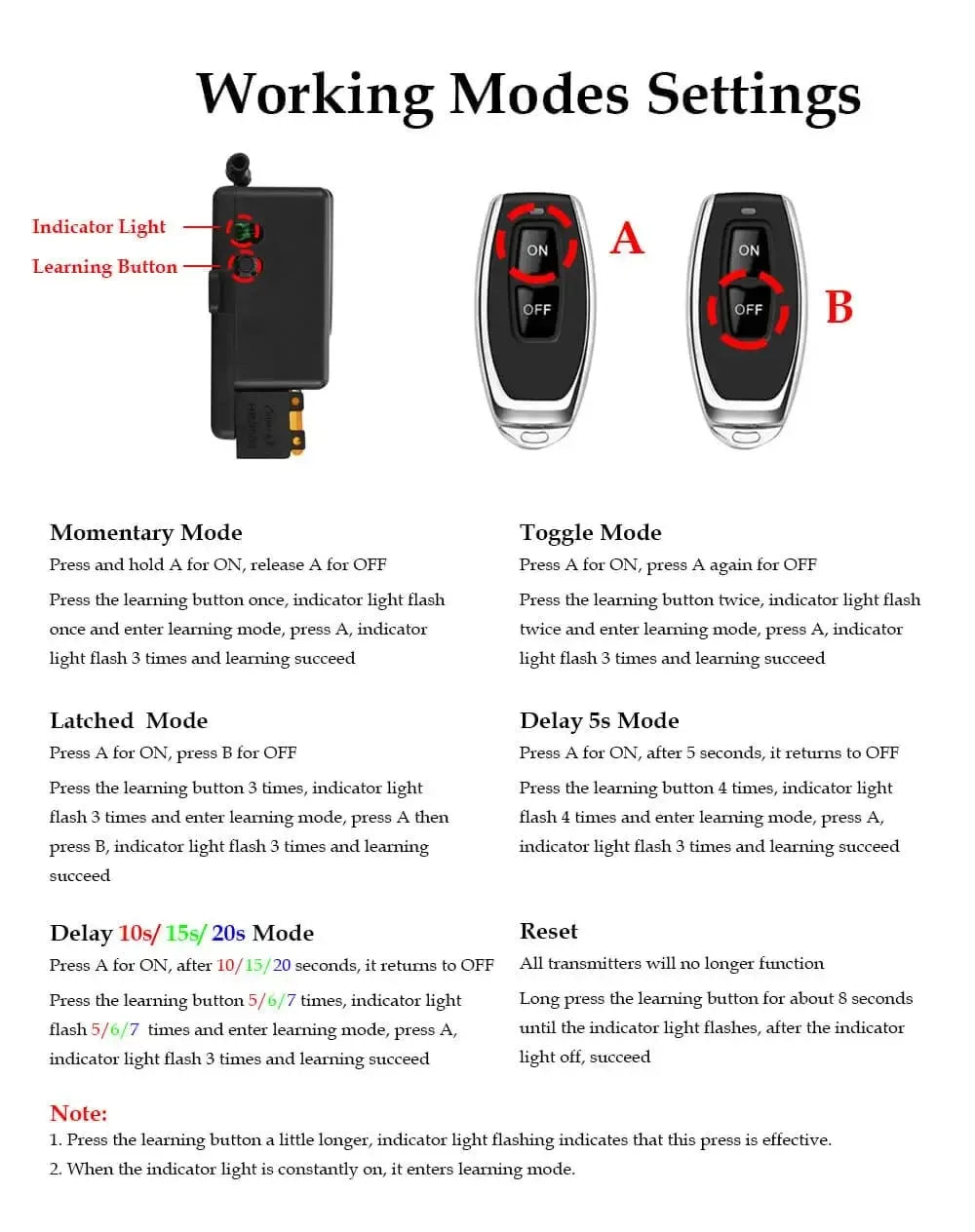

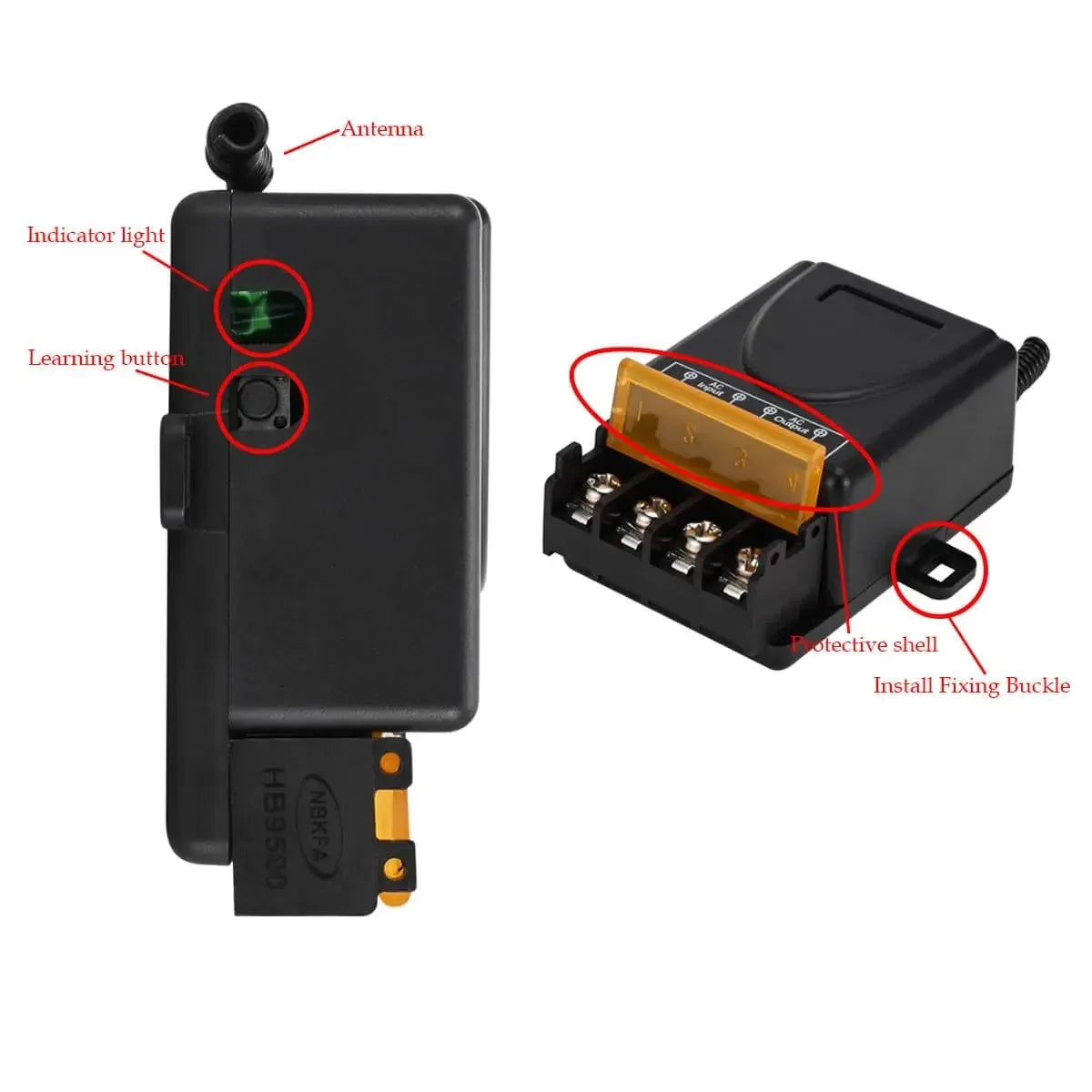

About Learning and clearing Method:
Input 12V for the Receiver ,
Momentary: press the Learning Button 1 time. the Led indicator flash 1 time, Then press transmitter, the Led indicator flash for 3 times, learning successfully.
Toggle: press the Learning Button 2 time. the Led indicator flash 2 time, Then press transmitter, the Led indicator flash for 3 times, learning successfully.
Latched: press the Learning Button 3 time. the Led indicator flash 3 time, Then press transmitter, the Led indicator flash for 3 times, learning successfully.
Delay time (5S): press the Learning Button 4 time. the Led indicator flash 4 time, Then press transmitter, the Led indicator flash for 3 times, learning successfully.
Delay time (10S): press the Learning Button 5 time. the Led indicator flash 5 time, Then press transmitter, the Led indicator flash for 3 times, learning successfully.
Delay time (15S): press the Learning Button 6 time. the Led indicator flash 6 time, Then press transmitter, the Led indicator flash for 3 times, learning successfully.
Clearning: Press the Learning button 8S . Until the receiver Led indicator flash for 3 times and OFF, it mean Clearing Code
